November 9, 2007

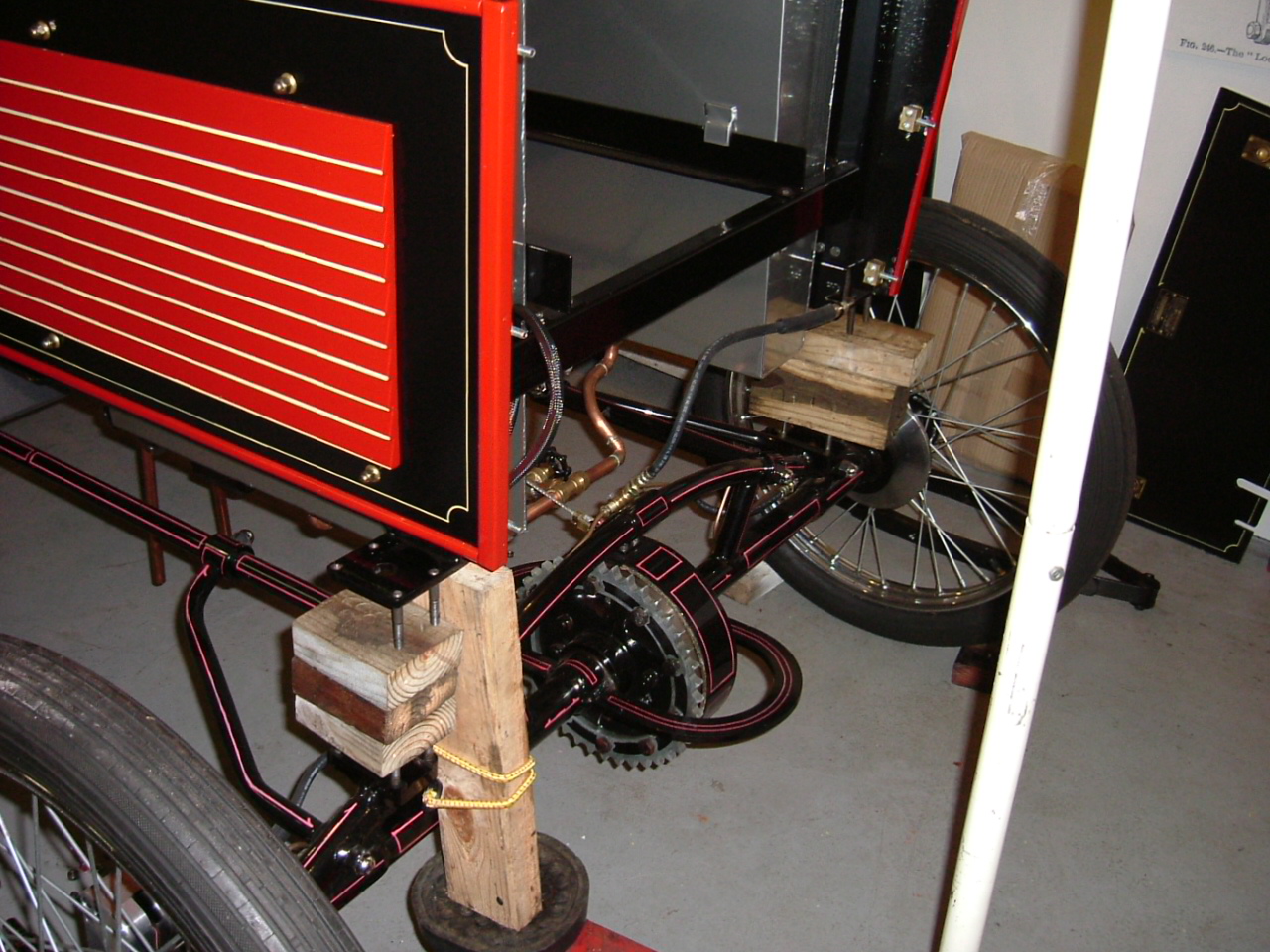

  Removed the leaf springs from the car and install temporary blocks instead. There are a lot of sharp edges on the spring stiffeners; so I used the grinding / wire wheel to remove the edges. I removed the spring eye bolts one at a time, and installed the stiffeners using the new bolts supplied. The stiffener's fell right into place with out any large hammer's required.
2.5 Hours

Nov. 10

  Prep and Painted the spring assemblies, I painted mine a Semi-Gloss Black, as I will be pin stripping them later.
2.0 Hours

Nov.12

  Installed the spring assemblies onto the car. The car now sits about 1.5" taller and is much stiffer than before. I can barely get any compression when I sit on the car, as before they almost went flat. There should be more than enough support now when the car is completed and full with 2 passengers.
2.5 Hours

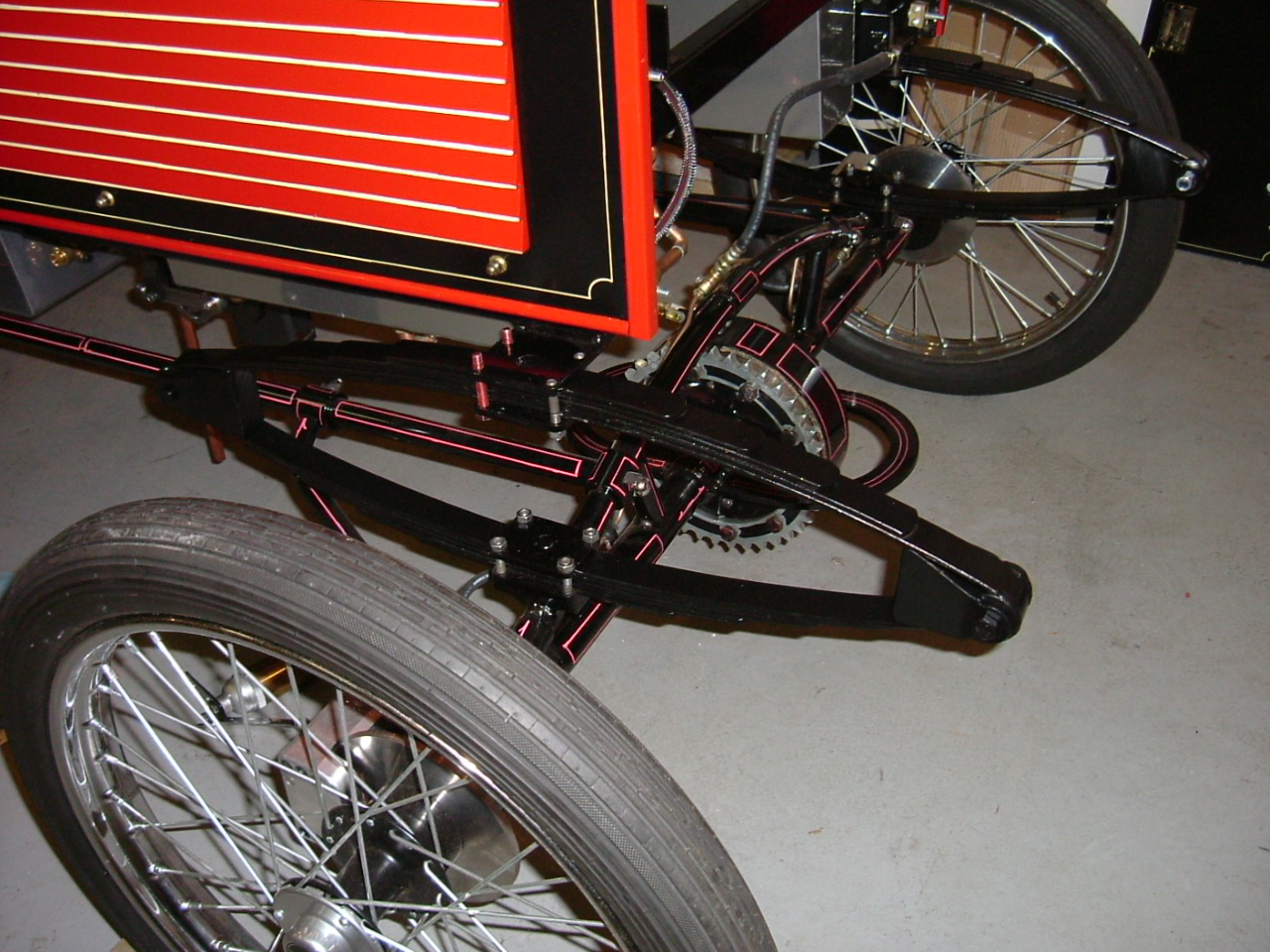

  I then spent several nights applying the pin stripping and some nut covers to match the ones I used on the chassis.

  This modification is an easy fix and it doesn't look bad either. A good save by the engineers at ModelWorks.

Happy Building

Rick
